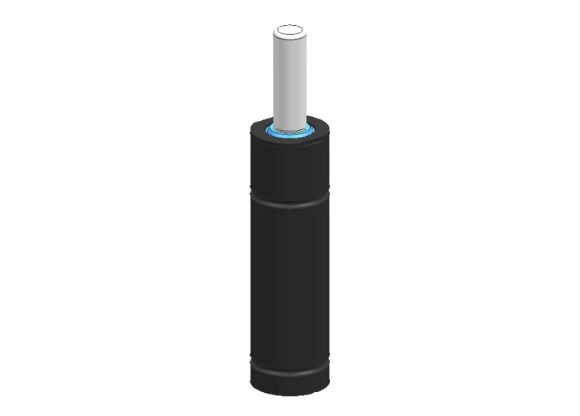

SI-CPM
The SI-CPM is available in four preset models, with initial forces from 50 to 200 daN. Each spring is colour-coded for easy
identification of force rating.
The SI-CPM spring can in many cases directly replace mechanical die springs of 25 mm (1 inch) diameter.
All SI-CPM springs can be repaired and recharged. The spring can be attached to the tool, using a mount (FCR or SM). The M6 thread in
the base of the spring is used for charging and is also a mounting option.
Details

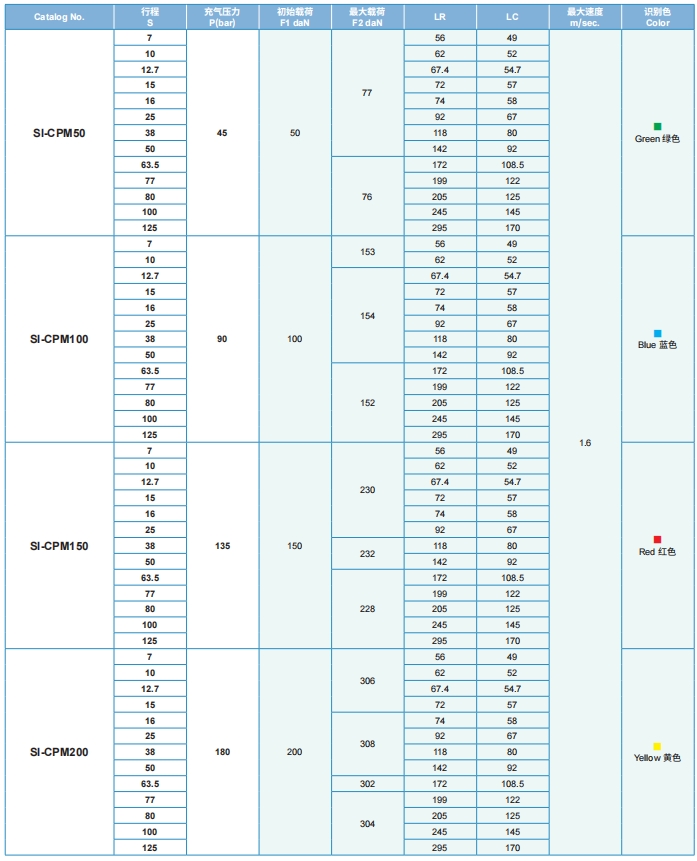

Size Chart Order Model Product Catalog
